Inspecta-Vu   VBS-1m

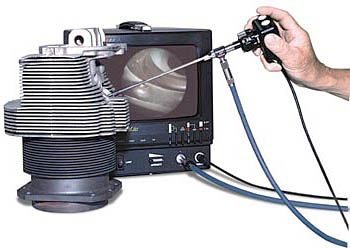

VBS-1m Systems includes a, 10-inch color monitor, a powerful illuminator and remote camera all in one unit. Connect any borescope and light guide and you're ready for full color video. The camera plugs in to the front of the unit. Operations with the VBS system may be video taped or converted to a digital image on a PC or laptop computer. The small, lightweight camera incorporates an advanced, high-resolution digital ¼-inch CCD sensor and electric 2X zoom.

FEATURES INCLUDE:
	10" Bright Color Monitor
	35 watt highly focused illuminator
	Video camera featuring: Single Cable Connection for video and power High Sensitivity Automatic color balance 2 x zoom function to fill the screen
	Full connection for taping directly from the video signal.
	Complete video system (you supply the scope and the light guide only)
	$2495

SPECIFICATIONS
Monitor	10" diagonal color
Resolution	380 horizontal lines on y/c (normal operation)
Video Standard	NTSC only. Unit is self contained and can be supplied to work on world wide voltage standards.
Outputs	1 y/c (SVHS), 1 composite
Inputs	1 Angiolaz Camera Port, 1y/c (can be used when camera is not connected only), 2 composite (switchable from front)
Illuminator Lamp	35 watt tungsten halogen reflector lamp
Light Guide	ACMI Connector
Attenuation	Shutter does not effect color balance
Camera	AngioLaz Inspecta-Vu A (HiRes) STD
Coupler	AngioLaz Inspecta-Vu BC1000-15, which has been match to the sensor for most scopes. Other focal lengths available on special order
Power Requirements	120 vac 50/60 hz 2 amps std. 220 vac 50/60 hz 1 amp special order
